DIN Cast Y-Stainer
DIN Cast Y-Strainer Technical Requirements
1.Design Standard: DIN EN13709-2003
2.Face to Face Dimension DIN EN588-1:1995.
3.End Flange Dimension DIN EN1092-1:2002.
4.Test Standard DIN EN12266:2003.
- category :Y Strainer
- Email :teji@teji-valve.com
- Phone :+86-577-67354000
- fax :+86-577-67354001
TECHNICAL REQUIREMENTS
1.Design Standard: DIN EN13709-2003
2.Face to Face Dimension DIN EN588-1:1995
3.End Flange Dimension DIN EN1092-1:2002.
4.Test Standard DIN EN12266:2003.
Y-Type Strainer is a device of medium transfer which are usually installed at the access side of reducing valve, relief valve, level control valve, so as to clear the impurities of the medium and protest valves & devices. Y-Strainer apply to the medium of water, oil and gas.
|
Performance Specifications |
||||
|
Nominal Pressure |
1.6MPa |
2.5MPa |
4.0MPa |
|
|
Pressure Test |
Intensity Test |
2.4MPa |
3.75MPa |
6.0MPa |
|
Back Seat Test |
1.76MPa |
2.75MPa |
4.4MPa |
|
|
Seal Test |
1.76MPa |
2.75MPa |
4.4MPa |
|
|
Gas Test |
0.6MPa |
0.6MPa |
0.6MPa |
|
|
Suitable Temp. |
-29~425℃ | |||
|
Suitable Medium |
W.O.G | |||
|
Main Parts & Materials |
|
|
Body |
GG GS-C25, CF8, CF8M |
|
Bolt |
A193 Gr. B7, A193 B8 |
|
Nut |
A194 Gr. 2H, A194 8 |
|
Bonnet |
GG GS-C25, CF8, CF8M |
|
Plug Screw |
SS304 |
|
Screen |
SS304 |
|
Gasket |
Flex.Graphite+SS304 |
|

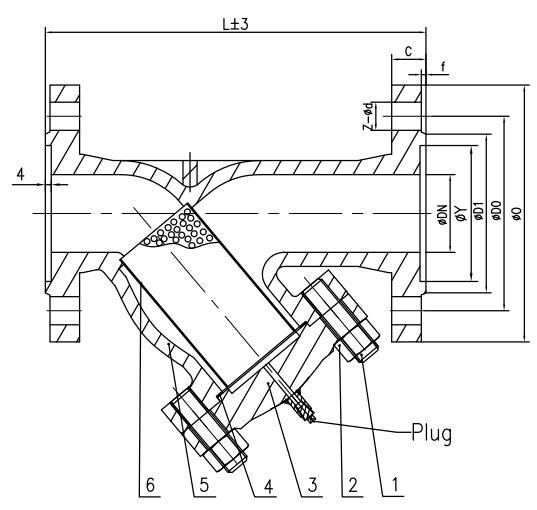

SIZE DN |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
L |
PN16 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
900 |
1100 |
|
PN25 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
900 |
1100 |
|
|
PN40 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
900 |
1100 |
|
|
D |
PN16 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
520 |
580 |
|
PN25 |
185 |
200 |
235 |
270 |
300 |
360 |
425 |
485 |
555 |
620 |
|
|
PN40 |
185 |
200 |
235 |
270 |
300 |
375 |
450 |
515 |
580 |
660 |
|
|
D0 |
PN16 |
145 |
160 |
180 |
210 |
240 |
295 |
365 |
410 |
470 |
525 |
|
PN25 |
145 |
160 |
190 |
220 |
250 |
310 |
370 |
430 |
490 |
550 |
|
|
PN40 |
145 |
160 |
190 |
220 |
250 |
220 |
385 |
450 |
510 |
585 |
|
|
D1 |
PN16 |
122 |
138 |
158 |
188 |
212 |
268 |
320 |
378 |
428 |
490 |
|
PN25 |
122 |
138 |
162 |
188 |
218 |
278 |
335 |
395 |
450 |
505 |
|
|
PN40 |
122 |
138 |
162 |
188 |
218 |
285 |
345 |
410 |
465 |
535 |
|
|
c |
PN16 |
18 |
20 |
20 |
22 |
22 |
24 |
26 |
28 |
30 |
32 |
|
PN25 |
22 |
24 |
24 |
26 |
28 |
30 |
32 |
34 |
38 |
40 |
|
|
PN40 |
22 |
24 |
24 |
28 |
28 |
34 |
38 |
42 |
46 |
50 |
|
|
f |
PN16 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
4 |
4 |
4 |
|
PN25 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
4 |
4 |
4 |
|
|
PN40 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
4 |
4 |
4 |
|
|
z-∅d |
PN16 |
8x18 |
8x18 |
8x18 |
8x18 |
8x22 |
12x22 |
12x26 |
12x26 |
16x26 |
16x30 |
|
PN25 |
8x18 |
8x18 |
8x22 |
8x22 |
8x26 |
12x26 |
16x30 |
16x30 |
16x33 |
16x36 |
|
|
PN40 |
8x18 |
8x18 |
8x18 |
8x18 |
8x26 |
12x30 |
16x33 |
16x33 |
16x36 |
16x39 |
|
|
Weight |
PN16 |
22.0 |
32.0 |
48.0 |
68.0 |
189.0 |
300.0 |
/ |
/ |
/ |
/ |
|
PN25 |
22.0 |
32.0 |
48.0 |
68.0 |
189.0 |
300.0 |
/ |
/ |
/ |
/ |
|
