Bolted Bonnet Forged Gate Valve
Conv. Port or Full Port
Outside Screw and Yoke (OS&Y)
Two piece self aligning packing gland
Captured Graphite Spiral wound gasket
- category :Forged Gate Valve
- Email :teji@teji-valve.com
- Phone :+86-577-67354000
- fax :+86-577-67354001
PRODUCT INTRODUCTION
A gate valve is an open-close gate whose direction of motion is perpendicular to the direction of the fluid. This bolted bonnet forged gate valve is easy to install with the detachable bolted connection. The seal face is flat or conical and the disc moves in a straight line along the center line of the fluid. Bolted bonnet forged gate valve is suitable for oil, gas, hot water or high temperature water boiler. Our products enjoy a good reputation at domestic and abroad as the superior quality and competitive price.
FEATURES
Conv. Port or Full Port
Outside Screw and Yoke (OS&Y)
Two piece self aligning packing gland
Captured Graphite Spiral wound gasket
Integral backseat
Socket weld ends to ASMS 16.11
Threaded Ends (NPT) to ANSI/ASME B1.20.1
NACE MR-01-75
OPTIONS
Alternate Trims
Alternate Body Materials
Welded Seats
Extended Body
STANDARDS
API-602
BS 5352
ANSI B16.34
API-598
MSS SP-25

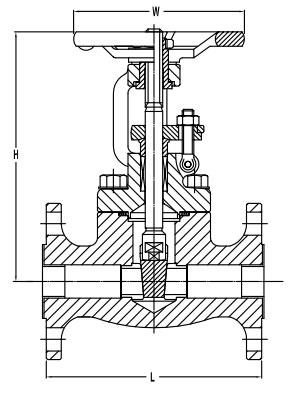

150 LB DIMENSIONS AND WEIGHTS INCHES/LBS (MILLIMETERS/KGS)
|
NPS |
Conv. |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
| Full |
|
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 | |
|
L |
4-1/4 (108) |
4-1/2 (117) |
5 (127) |
5-1/2 (140) |
6-1/2 (165) |
7 (178) |
7 (178) |
|
|
H (OPEN) |
7 (180) |
7-1/4 (182) |
8-1/2 (216) |
9-1/2 (240) |
9-3/4 (246) |
11-1/4 (283) |
13-1/4 (333) |
|
|
W |
4 (100) |
4 (100) |
5 (125) |
6-1/4 (160) |
6-1/4 (160) |
7 (180) |
8-3/4 (220) |
|
|
Weight |
9.9 (4.5) |
11.2 (5.1) |
18.0 (8.2) |
24.2 (11) |
27.5 (12.5) |
44.7 (20.3) |
44.9 (20.4) |
|
300 LB DIMENSIONS AND WEIGHTS INCHES/LBS (MILLIMETERS/KGS)
|
NPS |
Conv. |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
| Full |
|
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 | |
|
L |
5-1/2 (140) |
6 (152) |
6-1/2 (165) |
7.00 (178) |
7-1/2 (190) |
8-1/2 (216) |
8-1/2 (216) |
|
|
H (OPEN) |
7 (180) |
7-1/4 (182) |
8-1/2 (216) |
9-1/2 (240) |
9-3/4 (246) |
11-1/4 (283) |
13-1/4 (333) |
|
|
W |
4 (100) |
4 (100) |
5 (125) |
6-1/4 (160) |
6-1/4 (160) |
7 (180) |
8-3/4 (220) |
|
|
Weight |
13.6 (6.2) |
13.6 (6.2) |
20.5 (9.3) |
30.8 (14) |
34.1 (15.5) |
51.5 (23.4) |
49.4 (22.4) |
|
600 LB DIMENSIONS AND WEIGHTS INCHES/LBS (MILLIMETERS/KGS)
|
NPS |
Conv. |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
| Full |
|
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 | |
|
L |
6-1/2 (165) |
7.50 (190) |
8.50 (216) |
9 (229) |
9.50 (241) |
11.50 (292) |
11.50 (292) |
|
|
H (OPEN) |
6-1/2 (166) |
6-3/4 (169) |
7-1/2 (193) |
9 (230) |
9-3/4 (246) |
11-1/4 (283) |
13-1/4 (333) |
|
|
W |
4 (100) |
4 (100) |
5 (125) |
6-1/4 (160) |
6-1/4 (160) |
7 (180) |
8-3/4 (220) |
|
|
Weight |
15.2 (6.9) |
16.3 (7.4) |
22.9 (10.4) |
35.6 (16.2) |
38.5 (17.5) |
62.3 (28.3) |
56 (25.4) |
|
800 LB DIMENSIONS AND WEIGHTS INCHES/LBS (MILLIMETERS/KGS)
|
NPS |
Conv. |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
| Full |
|
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 | |
|
L |
3 (79) |
3 (79) |
3-5/8 (92) |
4-3/8 (111) |
4-3/4 (120) |
4-3/4 (120) |
5-1/2 (140) |
7 (178) |
|
|
H (OPEN) |
6-1/2 (166) |
6-1/2 (166) |
6-3/4 (169) |
7-3/4 (193) |
9 (230) |
9-3/4 (246) |
11 (283) |
13 (332) |
|
|
W |
4 (100) |
4 (100) |
4 (100) |
5 (125) |
6-1/2 (160) |
6-1/2 (160) |
7 (180) |
8 (200) |
|
|
Weights |
Bolted |
5.3 (2.4) |
5.1 (2.3) |
5.7 (2.6) |
9.9 (4.5) |
13.0 (5.9) |
15.8 (7.2) |
24.6 (11.2) |
41.4 (18.8) |
|
Welded |
5.3 (2.4) |
5.3 (2.4) |
5.9 (2.7) |
10.1 (4.6) |
13.4 (6.1) |
16.3 (7.4) |
25.1 (11.4) |
42.0 (19.1) | |
1500 LB DIMENSIONS AND WEIGHTS INCHES/LBS (MILLIMETERS/KGS)
|
NPS |
Conv. |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
|
| Full |
|
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 | |
|
L |
3 (79) |
4-1/4 (111) |
4-1/4 (111) |
4-1/4 (111) |
4-3/4 (120) |
4-3/4 (120) |
5-1/2 (140) |
7 (178) |
|
|
H (OPEN) |
6-1/2 (166) |
6-3/4 (170) |
7-1/2 (193) |
9 (230) |
9-3/4 (246) |
11-1/4 (283) |
12-3/4 (325) |
13-1/4 (334) |
|
|
W |
4 (100) |
5 (125) |
5 (125) |
6-1/4 (160) |
6-1/4 (160) |
7 (180) |
7-3/4 (200) |
7-3/4 (200) |
|
|
Weights |
Bolted |
5.3 (2.4) |
10.3 (4.7) |
10.3 (4.7) |
15.0 (6.8) |
19.8 (9) |
27.3 (12.4) |
38.5 (17.5) |
41.4 (18.8) |
|
Welded |
5.3 (2.4) |
10.6 (4.8) |
10.6 (4.8) |
15.2 (6.9) |
20.2 (9.2) |
27.7 (12.6) |
38.9 (17.7) |
42.0 (19.1) |
|
