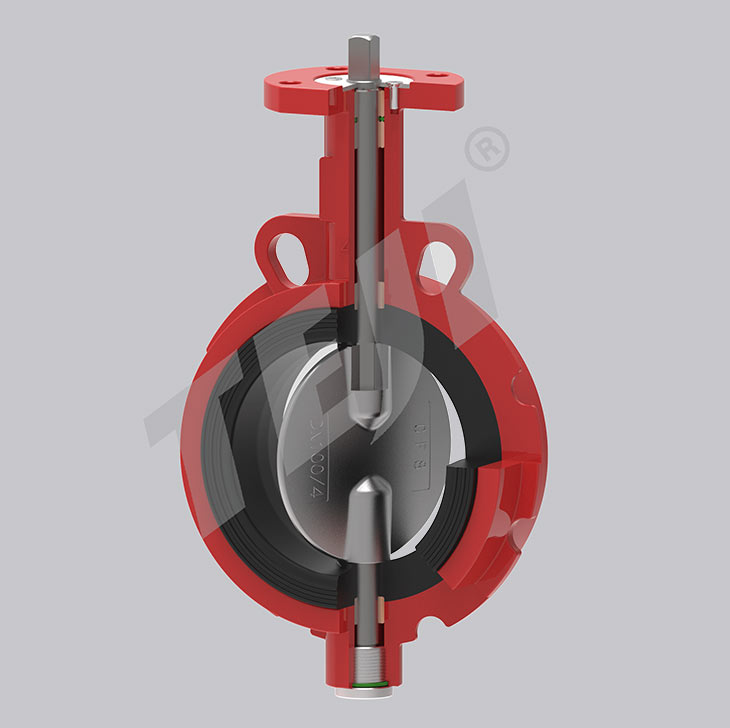

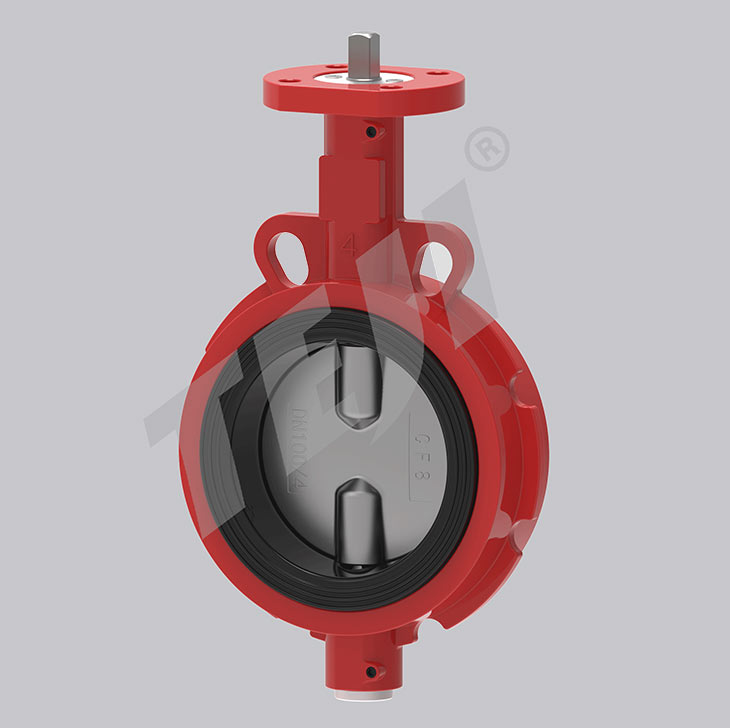

Resilient-seated Concentric Butterfly Valve
● Model: D71X, D41X
● Size: 2”~48”, DN50~DN1200
● Pressure: Class150LB, PN10~PN16, 5K~10K
● Body Materials: WCB, LCB, GGG40, GG25, CF8, CF8M, CF3, CF3M etc.
● Disc Material: Carbon Steel, Stainless Steel, Bronze etc.
- category :Concentric Butterfly Valve
- Email :teji@teji-valve.com
- Phone :+86-577-67354000
- fax :+86-577-67354001
SPECIFICATION:
● Model: D71X, D41X
● Size: 2”~48”, DN50~DN1200
● Pressure: Class150LB, PN10~PN16, 5K~10K
● Body Materials: WCB, LCB, GGG40, GG25, CF8, CF8M, CF3, CF3M etc.
● Disc Material: Carbon Steel, Stainless Steel, Bronze etc.
● Working Temperature: <120℃
● Working Pressure: <1.6MPa
● Design & Manufacture: API, ASTM, ANSI, DIN
● Face to Face: ASME B16.10, EN558, API 609
● Inspection & Testing: API 598, EN12266, ISO 5208
● Connection Type: Wafer, Double Flange, Lug
● Operation: Lever, Worm Gear, Electric, Pneumatic Actuator
● Trademark: TEJI or OEM
● Application: Water, Gas, Oil, Seawater etc
FEATURES:
Concentric designBi-directional service
Zero leakage
Low torque
Blowout-proof stem
ISO 5211 top flange
Optional extended stem design
PRODUCT RANGE:
Size: 2~72” (DN50~DN1800)
Rating: 150~232PSI (PN10~PN16)
Body Materials: Cast Iron, Cast Steel, Stainless Steel
Seat Material: EPDM, NBR, Viton
End Connection: Wafer, LUG, Double Flange
