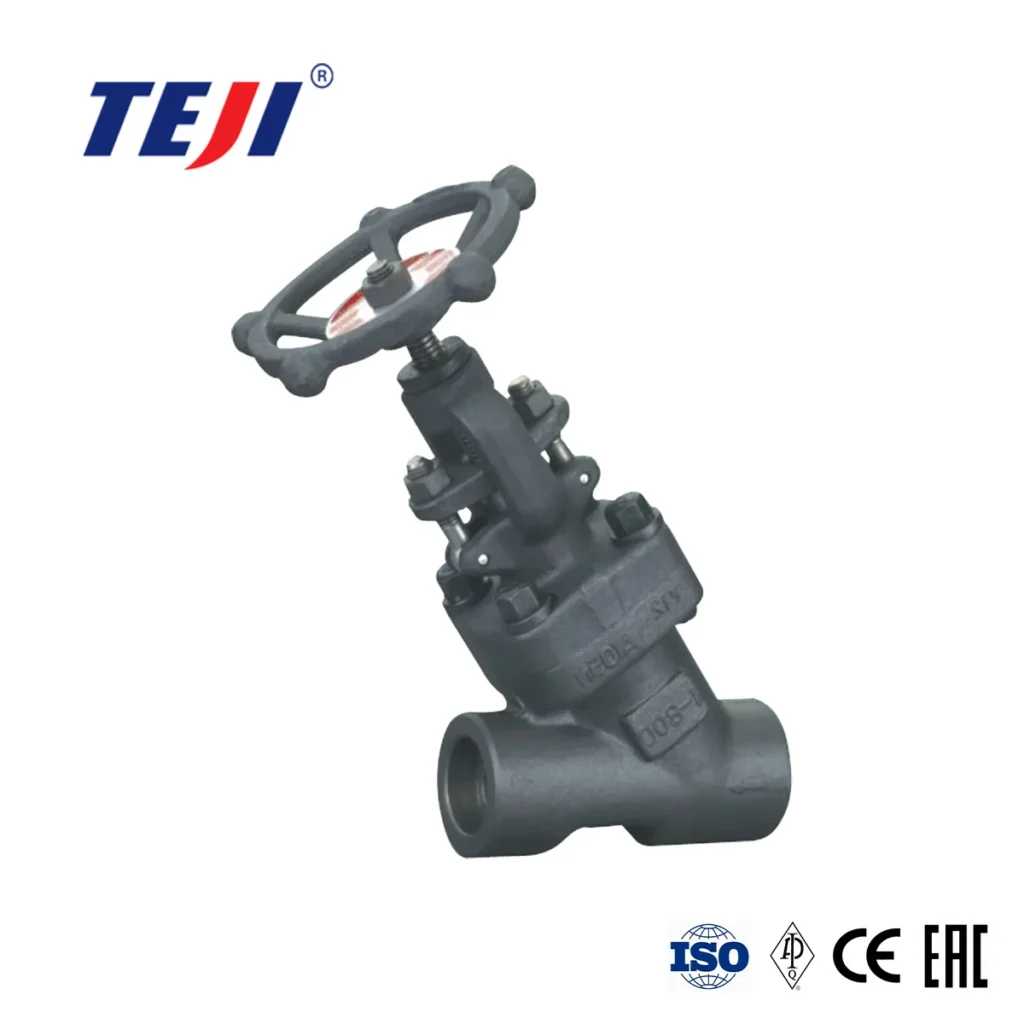

Y-type globe valve, also known as oblique globe valve, has a certain angle between stem and flow, and seat and sealing surface have a certain angle with the inlet and outlet. Y-type globe valve adopts straight structure. During the opening and closing process, the friction between the sealing surfaces is small, durable, the opening height is small, and the maintenance is convenient. It is not only suitable for medium and low pressure, but also suitable for high pressure. Y-type globe valves are widely used in petrochemical, metallurgical, chemical, power plant, pharmaceutical industries, etc. They are used to cut off or connect the medium in the pipeline, generally not used to regulate the flow rate. FEATURE Pressure seal Low leakage Easy maintenance Straight-through type SPECIFICATIONS Size: 3/8”~2”, DN15-DN50 Pressure Rating: Class150~2500LB, PN10-PN420 Main Materials: A105, LF2, LF3, F304, F316, F321, etc. Design and Manufacture: API6D, ASME 16.34 Face-to-Face: ASME B16.10 Ends Connection: Flange, Butt Welding, Socket Welding, Thread etc. Inspection & Testing: API 598 Operator: Bare shaft, Manual, Worm Gear, Electric. BONNET DESIGN FORMS A bolt-type bonnet. In the valve designed in this design form, the valve body and the bonnet are connected with bolts and nuts, and the wound gasket (made of 316 clip flexible graphite) is sealed. When customers have special requirements, they also can use metal ring connection. A welded bonnet. For a valve designed in this form, the valve body and the bonnet are connected with threads and are fully welded and sealed. When customers have special requirements, they can also use full welding two connections. The pressure self-tightening cover. The valve designed in this form has the body and the cover connected with threads, and the internal pressure is sealed by a self-sealing ring. It also can be designed as Y-type valves.
