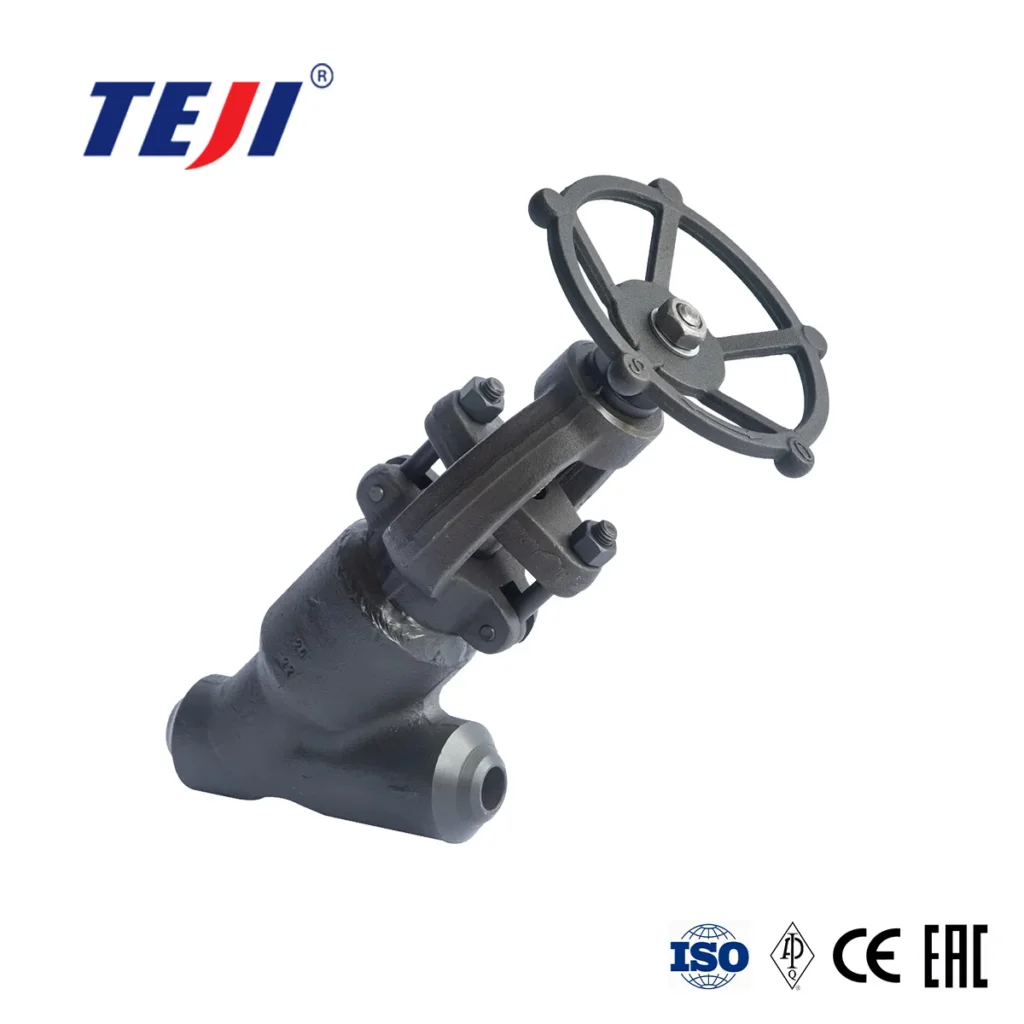

PRODUCT INTRODUCTIN Forging flange is one of the best mechanical properties of flange products, the raw material is generally tube billet, and then cut and continue to beat, in order to eliminate segregation, porosity and other defects of the ingot. The integral flange forged globe valve has good resistance to pressure and temperature. It is generally suitable for high pressure and high temperature working environment. FEATURES The open or close travel of integral flange forged globe valve is relatively short and it has a very reliable cut-off function,very suitable for the regulation of flow. The unique sealing design makes it has good sealing performance, can ensure there will be no leakage. SPECIFICATION Size range 1 / 4 “to 2” Optional Materials Carbon Steel: A105, LF2 Stainless Steel: F304, F304L, F316, F316L Duplex: F51, F55 Alloy: F1, F5, F5A, F9, F11, F22 APPLICATION CRITERIA Design: API 602/ASME 16.34/BS 5352 Pressure Test: API 598 Tag: MSS SP25 Spacing: ASME B16.10 Flange dimensions: ANSI B16.5 PRESSURE RATING CLASS 150 CLASS 300 CLASS 600 CLASS 1500 CLASS 2500
