Product Detail

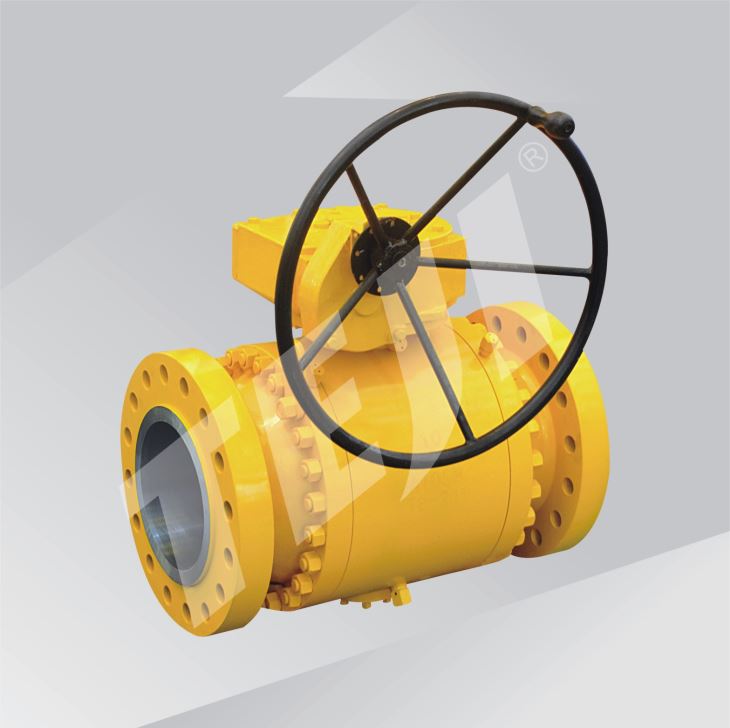

3pc Flanged Trunnion Ball Valve

3pc flanged trunnion ball valve
Size : 2~48"(DN50~DN1200)
Rating : 150~1500LB(PN16~PN250)
Body Materials: CS, SS

Specifications

3pc flanged trunnion ball valve
Size : 2~24"(DN50~DN1200)
Rating : 150~600LB(PN16~PN250)
Body Materials: CS, SS



Applicable Standard:

● Design Standard: API 6D, ASME B16.34, API 608, BS 5351, MSS SP-72

● Face to Face: API 6D, ASME B16.10, EN 558

● End Connection: ASME B16.5, ASME B16.25

● Inspection and Test: API 6D, API 598


Design Features:

● Blow-out proof stem

● Key lock

● Anti-fire safe design

● Anti-static device

● Free leakage of body Sealed construction

● Double block&bleed(DBB)

● Emergency sealing

● Automatic body cavity relief

● Various driving types

● Fire safe design to API 607/ API 6FA

● Anti-static to BS 5351

● Cavity pressure self relief

● Optional locking device

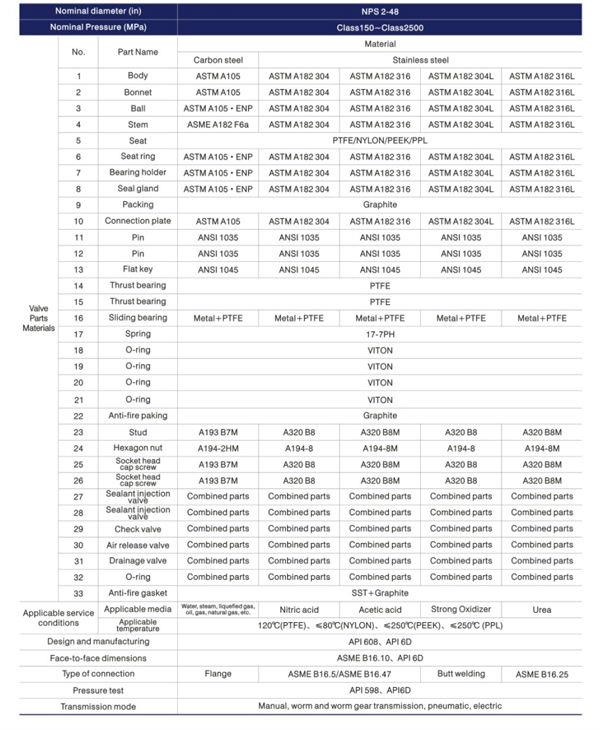

Product parameter
