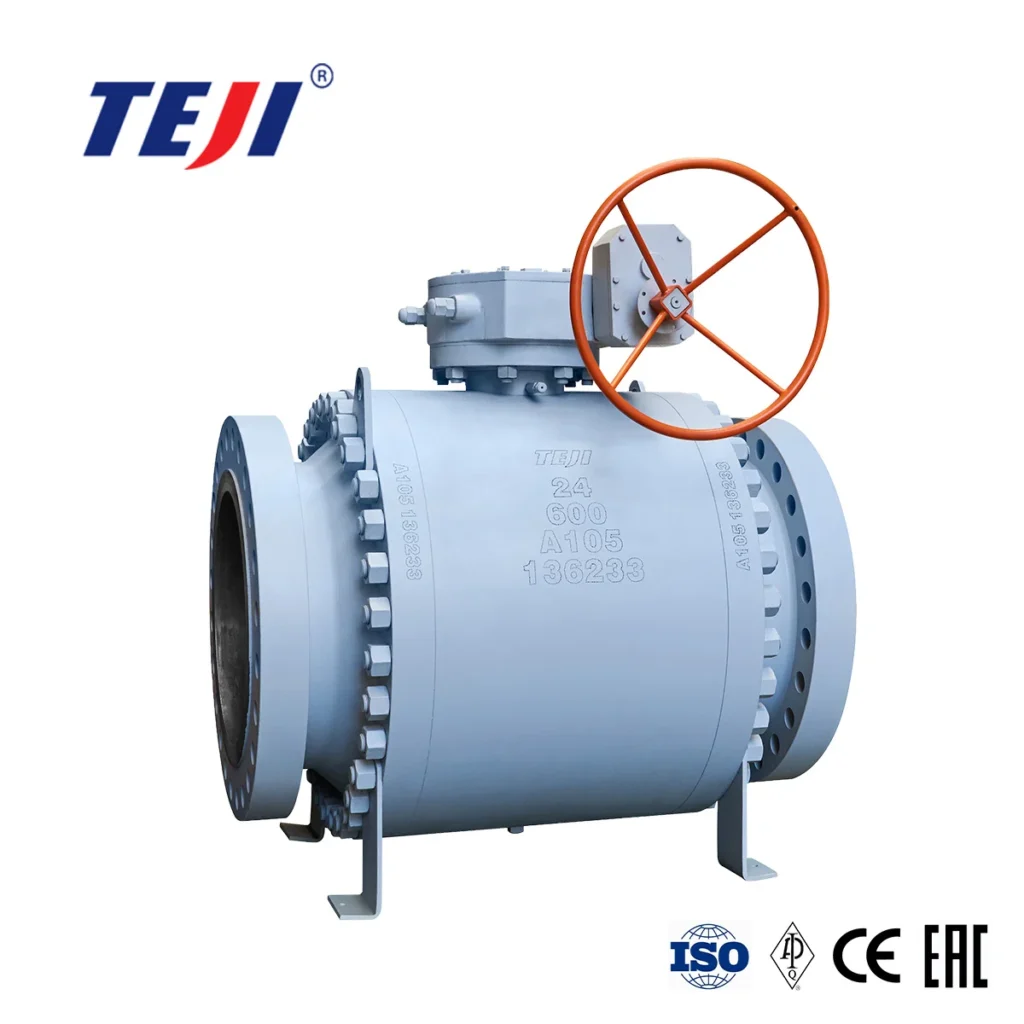

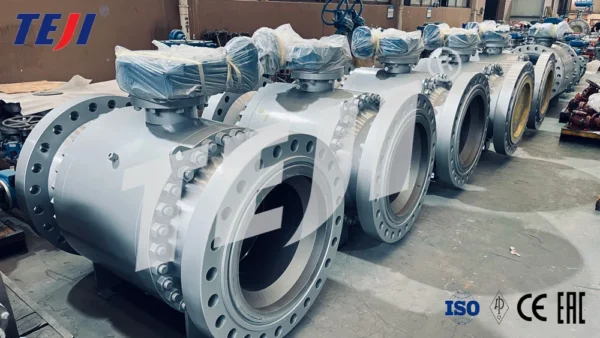

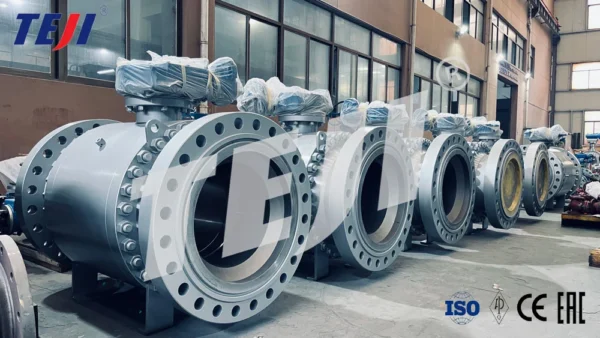

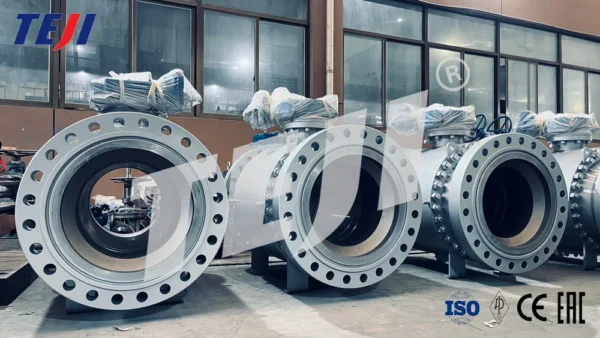

GENERAL CONSTRUCTION: Trunnion ball valves have the obturator bounded by trunnion which prevents axial displacements of the ball itself in the flow direction; line pressure compresses the seat onto the ball, the contact between surfaces generates the valve sealing; trunnion standard construction ensure automatic cavity relief in case of overpressure in body cavity; these valves can be selected for a wide range of applications with no specific limits to all sizes and pressures.

Construction	Two or Three piece bolted body
Port	Reduced bore, full bore or fully piggable
Stem retention	Anti blow-out stem
Leakage rate	ISO 5208 rate A soft seated, rate D metal seated
Antistatic device	Included, the ball valve design including an electric conductive connection between the internal parts of the ball valve and the body, providing the anti-static function.
Pressure relief	Automatic cavity relief to prevent over pressure in body cavity (self-relieving seats)
Bi-directional, Double block & bleed (DBB) with sealing in both directions (DIB-1&2 upon request)
Sealing	Metal seated with Tungsten or Chrome Carbide coatings Primary metal secondary soft (PMSS) with different hardness between the ball and seat to prevent galling of the substrate Soft seated with thermoplastic polymers (Nylon, PEEK, PCTFE), special polymers upon request, Elastomers FKM, HNBR, EPDM O-Rings, special elastomers upon request.
Drain	Drilled and threaded connections for all sizes
Vent	Drilled and threaded vent connections for sizes≥DN150 (6″) < DN150 upon request
Stem grease injectors	Including for all sizes
Seat grease injectors	Including for sizes≥DN150 (6″), < DN150 upon request
Lifting points	Including for sizes ≥ DN150 (6″) or on valves of 250 kg min.
Support feet	Including for sizes ≥ DN150 (6″) or on valves of 250 kg min
Stem extension	Not foreseen for this model
Valve operation	Lever, Gear box or Actuator with position indicator and locking device
Material testing	Pressure containing & controlling parts to EN 10204 3.1
Materials in Sour Service according to NACE MR0175, MR0103, ISO 15156
Non-destructive testing (NDT) to API 6D, ASME B16.34
Valve testing	Hydrostatic & pneumatic testing to API 6D, ASME B16.34, ISO 5208 (other upon request)

TECHNICAL DATA: Design: API 6D, API 6DSS, API 6A, ASME B16.34, ISO 14313, ISO 10423, ISO 17292 Design pressure: ASME B16.34, EN 1092-1, ISO 17292 Body wall thickness: ASME B16.34, ASME VIII Div. I, ISO 17292 Face to Face: API 6D, ASME B16.10 Long pattern Temperature range: -29° to 200°C (-20.2° to 392°F) Pressures range: PN20 (ANSI 150) to PN420 (ANSI 2500) Size range: DN15 (1/2″) to DN1400 (56″) End connections: ASME B16.5 ≤ DN600 (24″) Flanged RF,FF,RTJ MSS-SP-44 = DN550 (22″) Flanged RF,FF,RTJ ASME B16.47 A ≥ DN650 (26″) Flanged RF,FF,RTJ ASME B16.25 Butt-Weld BW Product Parameter APPROVALS: Safety Integrity Level: SIL 3 Fire Safe: API 607, API 6FA, BS 6755, ISO 10497-5 Area Classification: ATEX 94/9/EC Pressure Equipment Directive: PED 97/23/EC Fugitive Emission: ISO 15848/1 Construction: API 6D, API 608
