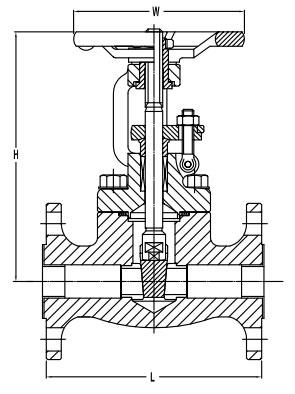

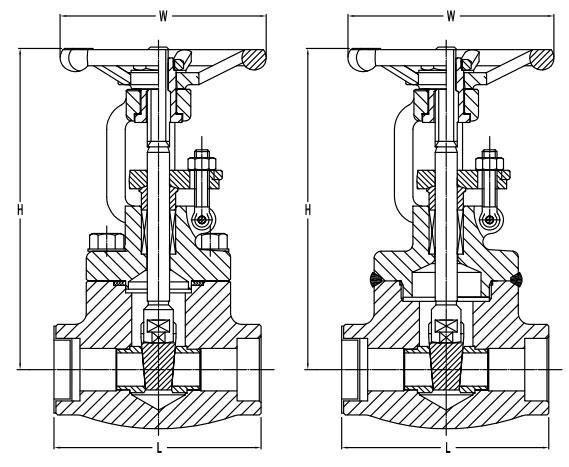

PRODUCT INTRODUCTION A gate valve is an open-close gate whose direction of motion is perpendicular to the direction of the fluid. This bolted bonnet forged gate valve is easy to install with the detachable bolted connection.  The seal face is flat or conical and the disc moves in a straight line along the center line of the fluid. Bolted bonnet forged gate valve is suitable for oil, gas, hot water or high temperature water boiler. Our products enjoy a good reputation at domestic and abroad as the superior quality and competitive price. FEATURES Conv. Port or Full Port Outside Screw and Yoke (OS&Y) Two piece self aligning packing gland Captured Graphite Spiral wound gasket Integral backseat Socket weld ends to ASMS 16.11 Threaded Ends (NPT) to ANSI/ASME B1.20.1 NACE MR-01-75 OPTIONS Alternate Trims Alternate Body Materials Welded Seats Extended Body STANDARDS API-602 BS 5352 ANSI B16.34 API-598 MSS SP-25 150 LB DIMENSIONS AND  WEIGHTS INCHES/LBS (MILLIMETERS/KGS)

NPS	Conv.	1/2	3/4	1	1 1/4	1 1/2	2
	Full		1/2	3/4	1	1 1/4	1 1/2	2
L		4-1/4 (108)	4-1/2 (117)	5 (127)	5-1/2 (140)	6-1/2 (165)	7 (178)	7 (178)
H (OPEN)		7 (180)	7-1/4 (182)	8-1/2 (216)	9-1/2 (240)	9-3/4 (246)	11-1/4 (283)	13-1/4 (333)
W		4 (100)	4 (100)	5 (125)	6-1/4 (160)	6-1/4 (160)	7 (180)	8-3/4 (220)
Weight		9.9 (4.5)	11.2 (5.1)	18.0 (8.2)	24.2 (11)	27.5 (12.5)	44.7 (20.3)	44.9 (20.4)

300 LB DIMENSIONS AND  WEIGHTS INCHES/LBS (MILLIMETERS/KGS)

NPS	Conv.	1/2	3/4	1	1 1/4	1 1/2	2
	Full		1/2	3/4	1	1 1/4	1 1/2	2
L		5-1/2 (140)	6 (152)	6-1/2 (165)	7.00 (178)	7-1/2 (190)	8-1/2 (216)	8-1/2 (216)
H (OPEN)		7 (180)	7-1/4 (182)	8-1/2 (216)	9-1/2 (240)	9-3/4 (246)	11-1/4 (283)	13-1/4 (333)
W		4 (100)	4 (100)	5 (125)	6-1/4 (160)	6-1/4 (160)	7 (180)	8-3/4 (220)
Weight		13.6 (6.2)	13.6 (6.2)	20.5 (9.3)	30.8 (14)	34.1 (15.5)	51.5 (23.4)	49.4 (22.4)

600 LB DIMENSIONS AND  WEIGHTS INCHES/LBS (MILLIMETERS/KGS)

NPS	Conv.	1/2	3/4	1	1 1/4	1 1/2	2
	Full		1/2	3/4	1	1 1/4	1 1/2	2
L		6-1/2 (165)	7.50 (190)	8.50 (216)	9 (229)	9.50 (241)	11.50 (292)	11.50 (292)
H (OPEN)		6-1/2 (166)	6-3/4 (169)	7-1/2 (193)	9 (230)	9-3/4 (246)	11-1/4 (283)	13-1/4 (333)
W		4 (100)	4 (100)	5 (125)	6-1/4 (160)	6-1/4 (160)	7 (180)	8-3/4 (220)
Weight		15.2 (6.9)	16.3 (7.4)	22.9 (10.4)	35.6 (16.2)	38.5 (17.5)	62.3 (28.3)	56 (25.4)

800 LB DIMENSIONS AND  WEIGHTS INCHES/LBS (MILLIMETERS/KGS)

NPS	Conv.	3/8	1/2	3/4	1	1 1/4	1 1/2	2
	Full		3/8	1/2	3/4	1	1 1/4	1 1/2	2
L		3 (79)	3 (79)	3-5/8 (92)	4-3/8 (111)	4-3/4 (120)	4-3/4 (120)	5-1/2 (140)	7 (178)
H (OPEN)		6-1/2 (166)	6-1/2 (166)	6-3/4 (169)	7-3/4 (193)	9 (230)	9-3/4 (246)	11 (283)	13 (332)
W		4 (100)	4 (100)	4 (100)	5 (125)	6-1/2 (160)	6-1/2 (160)	7 (180)	8 (200)
Weights	Bolted	5.3 (2.4)	5.1 (2.3)	5.7 (2.6)	9.9 (4.5)	13.0 (5.9)	15.8 (7.2)	24.6 (11.2)	41.4 (18.8)
	Welded	5.3 (2.4)	5.3 (2.4)	5.9 (2.7)	10.1 (4.6)	13.4 (6.1)	16.3 (7.4)	25.1 (11.4)	42.0 (19.1)

1500 LB DIMENSIONS AND  WEIGHTS INCHES/LBS (MILLIMETERS/KGS)

NPS	Conv.	3/8	1/2	3/4	1	1 1/4	1 1/2	2
	Full		3/8	1/2	3/4	1	1 1/4	1 1/2	2
L		3 (79)	4-1/4 (111)	4-1/4 (111)	4-1/4 (111)	4-3/4 (120)	4-3/4 (120)	5-1/2 (140)	7 (178)
H (OPEN)		6-1/2 (166)	6-3/4 (170)	7-1/2 (193)	9 (230)	9-3/4 (246)	11-1/4 (283)	12-3/4 (325)	13-1/4 (334)
W		4 (100)	5 (125)	5 (125)	6-1/4 (160)	6-1/4 (160)	7 (180)	7-3/4 (200)	7-3/4 (200)
Weights	Bolted	5.3 (2.4)	10.3 (4.7)	10.3 (4.7)	15.0 (6.8)	19.8 (9)	27.3 (12.4)	38.5 (17.5)	41.4 (18.8)
	Welded	5.3 (2.4)	10.6 (4.8)	10.6 (4.8)	15.2 (6.9)	20.2 (9.2)	27.7 (12.6)	38.9 (17.7)	42.0 (19.1)
